Carinya Bi-Fold Window

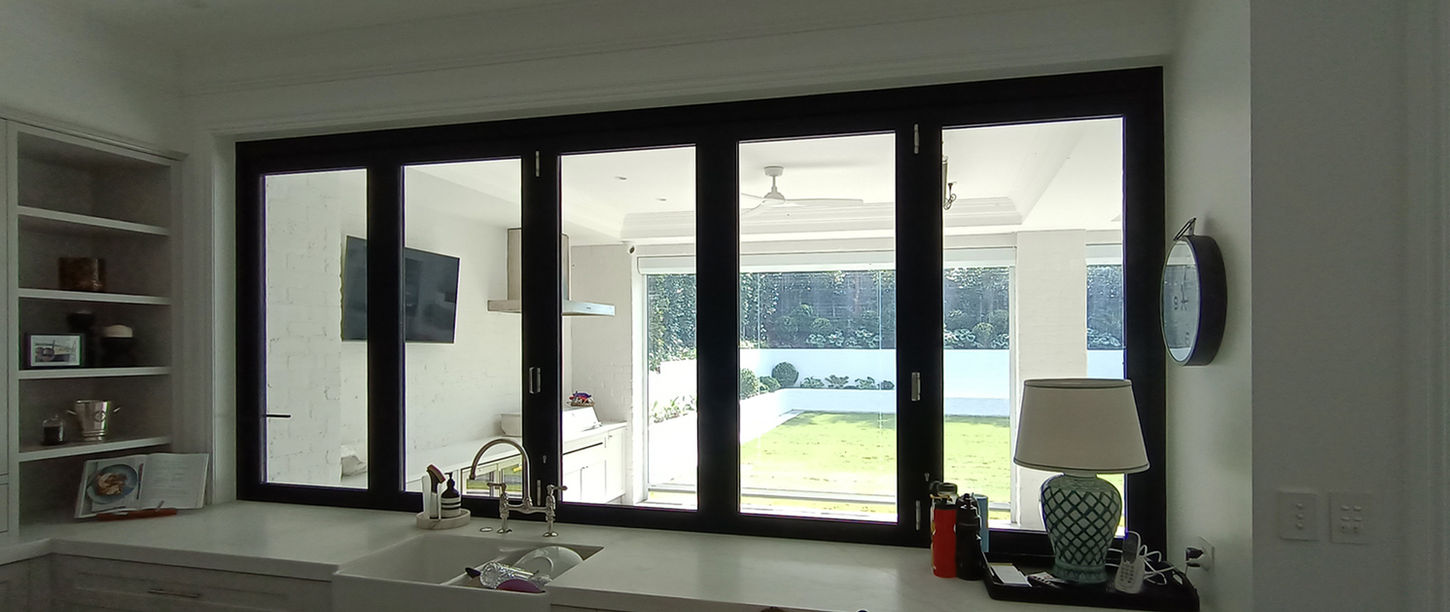

With an easy to operate Brio twin-bolt and high performing Centor hardware, the Carinya Bi-Fold is the perfect solution for your kitchen servery window.
Standard Colours
Custom
Black Matt
Monument
Matt
Ironstone
Woodland Grey
APO Grey
Pearl White
Gloss
Primrose
White Birch
Surfmist
Matt
Paperbark
Matt
More Colours Available
*Colours are indicative and may vary from what is shown
Hardware Options
Brio Twin-Bolt
Finishes: Stainless Steel
Black
Glass Options
Clear Laminated
A robust grade A safety glass with great acoustic properties. Available in frosted as well.
Clear Low-E
Energy efficient glass that is also clear for maximum sun light
Grey Low-E
A high performing energy efficient glass ideal for reflecting the sun out
Clear Toughened
A very tough grade A safety glass that is up to 5 times stronger then standard annealed glass. Ideal for large glass panels
Neutral Low-E
Energy efficient glass designed for our warm climate
Frosted
Available in acid etched or white laminate used to create privacy while still allowing light in
Double Glazed
2 Pieces of glass hermetically sealed and filled with argon to improve performance. A combination of clear and Low-E glass can be used to further increase performance. Its the best choice for performance in both hot and cold climates
More Glass Options Available
*Illustrations are indicative and actual product may vary from what is shown
Product Specifications
Frame Width
92mm
Maximum Sash Height
2400mm
Maximum Sash Width
900mm
Maximum Sash Weight
80kg
Maximum Glass Thickness
SG: 10.5mm, DG: 24mm
U-Value Range
3.1 to 5.9
SHGC
0.18 to 0.59
Water Rating
150pa to 300pa
Bushfire Rating
BAL-Low to BAL 40
Other custom configurations available
