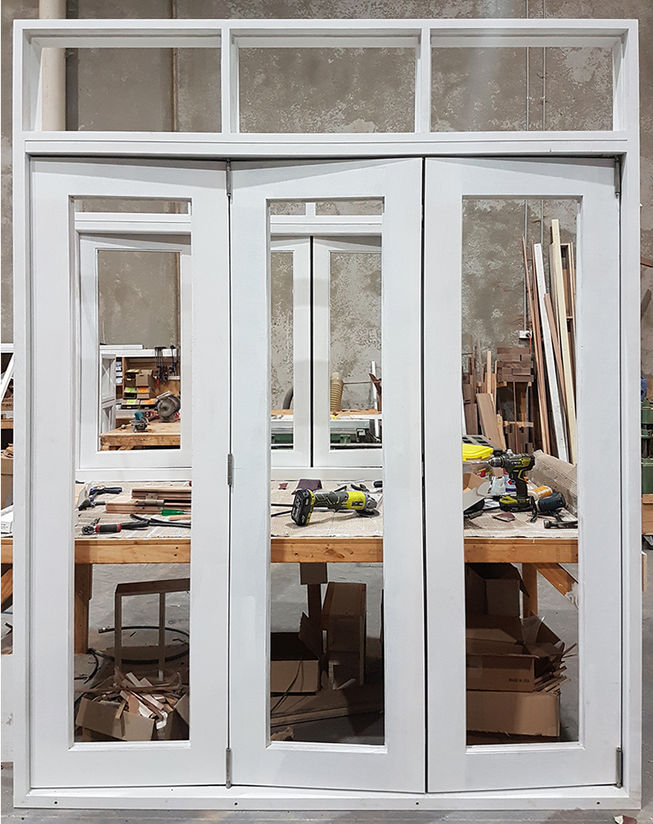

Timber Bi-Fold Door
With an easy to operate Centor drop-bolts and high performing Centor hardware, our timber Bi-Fold is the perfect solution for your entertaining and alfresco areas
Standard Timbers
More Timber Types Available
Western Red Cedar
Meranti
Merbau
Hardware Options
Centor Drop Bolt
Finishes: Natural Anodized
Glass Options
Clear Laminated
A robust grade A safety glass with great acoustic properties. Available in frosted as well.
Clear Low-E
Energy efficient glass that is also clear for maximum sun light
Grey Low-E
A high performing energy efficient glass ideal for reflecting the sun out
Clear Toughened
A very tough grade A safety glass that is up to 5 times stronger then standard annealed glass. Ideal for large glass panels
Neutral Low-E
Energy efficient glass designed for our warm climate
Frosted
Available in acid etched or white laminate used to create privacy while still allowing light in
Double Glazed
2 Pieces of glass hermetically sealed and filled with argon to improve performance. A combination of clear and Low-E glass can be used to further increase performance. Its the best choice for performance in both hot and cold climates
Product Specifications
Frame Width
138mm
Maximum Sash Height
3000mm
Maximum Sash Width
1000mm
Maximum Sash Weight
30kg
Maximum Glass Thickness
SG: 10.5mm, DG: 18mm
U-Value Range
3.2 to 6.6
SHGC
0.22 to 0.78
Water Rating
150pa
Bushfire Rating
BAL-Low to BAL 29
Typical Configurations
Other custom configurations available
